- CoroTurn 107 screw clamping system uses positive inserts with a 7º clearance angle.

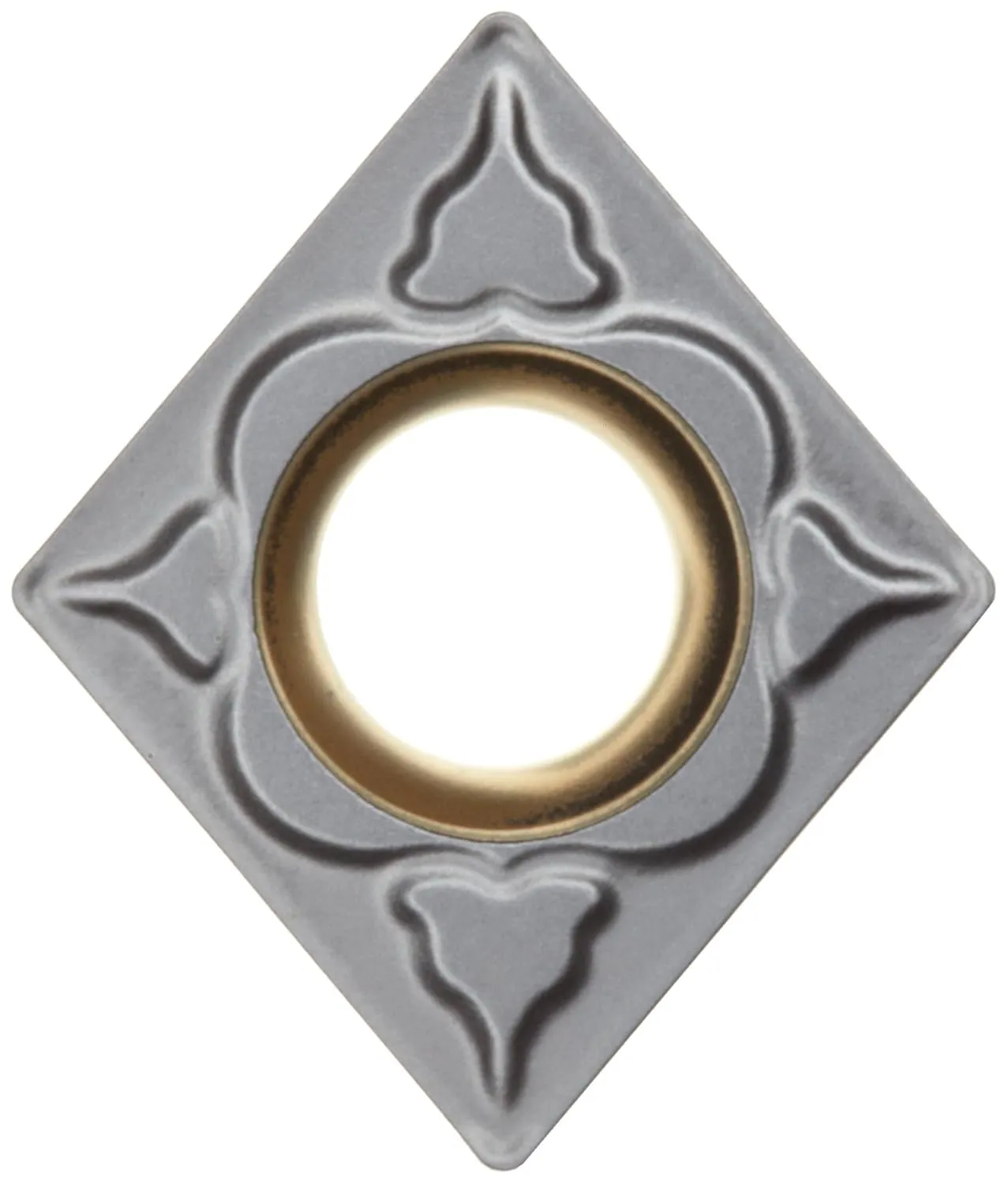

- Diamond 80 degree turning insert, insert size is 432
- Roughing Chipbreaker, Cast Iron Application
- This single- sided insert is used mainly in small tools for internal and external machining. The inserts are clamped with a screw through a center hole. The CoroTurn 107 is the first choice system for internal longitudinal turning of small diameters, and is also used for external light roughing to finishing of smaller components.
- Multilayer coating combines TiCN, Aluminum Oxide, and TiN excellent general choice for roughing of all cast irons at low to medium cutting speeds
CVD-coated carbide consisting of a thick, smooth, wear resistant coating and a very hard substrate, capable of withstanding demanding interrupted cutting conditions. Recommended as general choice for roughing of all cast irons at low to medium cutting speeds.
- Package Dimensions : 3.3 x 1.5 x 0.3 inches; 0.8 ounces
- Date First Available : August 26, 2010
- Manufacturer : Sandvik Coromant
